Code 39
Code 39 or 3-of-9 supports a 43-character set of upper case letters, digits, and a few special characters. A variant using the Barcode39FullAscii option will encode a full ascii character using two standard code 39 characters.
Options
- Barcode39BarWidth 0 - Set the width of the narrowest bar. See Barcode Widths section above.
- Barcode39Ratio 3 - Set the ratio of narrow to wide bars.

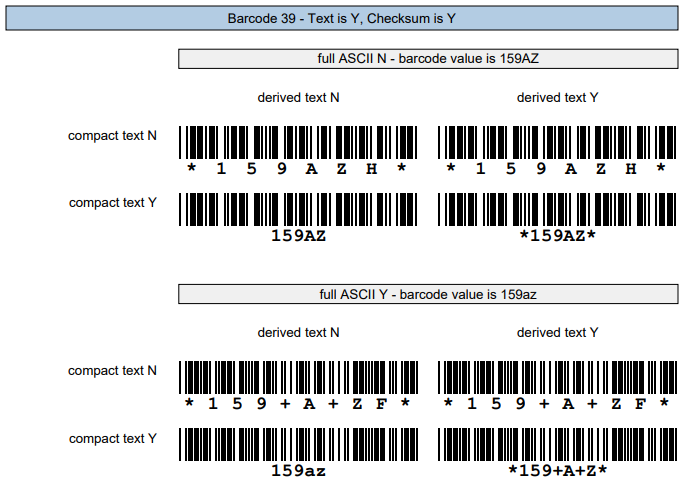

- Barcode39Text Y - If Y, adds human-readable text below the barcode. Each character is drawn beneath its bar representation, so spread across the width of the barcode.
Barcode39AddChecksum N - If Y, computes a trailing checksum automatically. Checksum text is included only when Compact Text is N.
Barcode39CompactText N - If N, each character is drawn beneath its bar representation. If Y, the text is instead compacted together.
Barcode39FullAscii N - If Y, convert text to use 2-character encoding of all text.
Barcode39DerivedText N - If Y, the text includes any added characters, including from the full ASCII option. Applicable only when compact text is Y.
